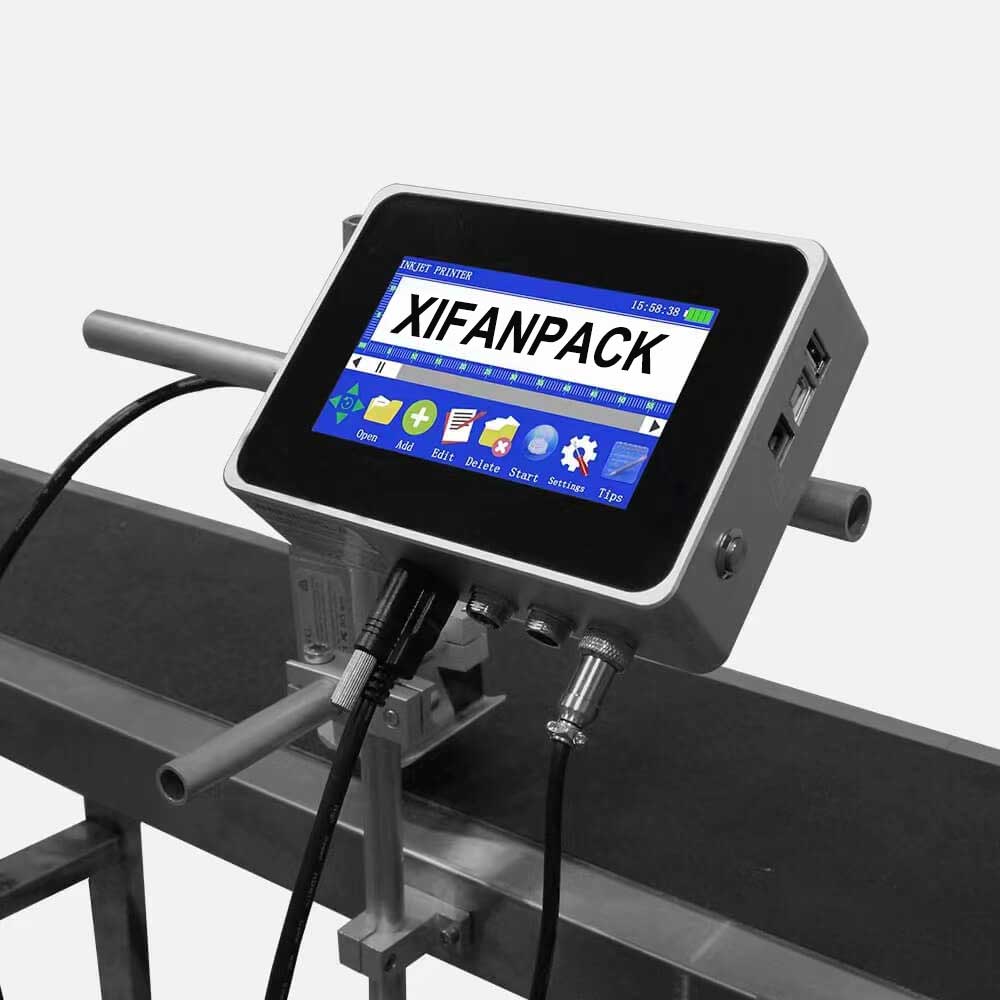

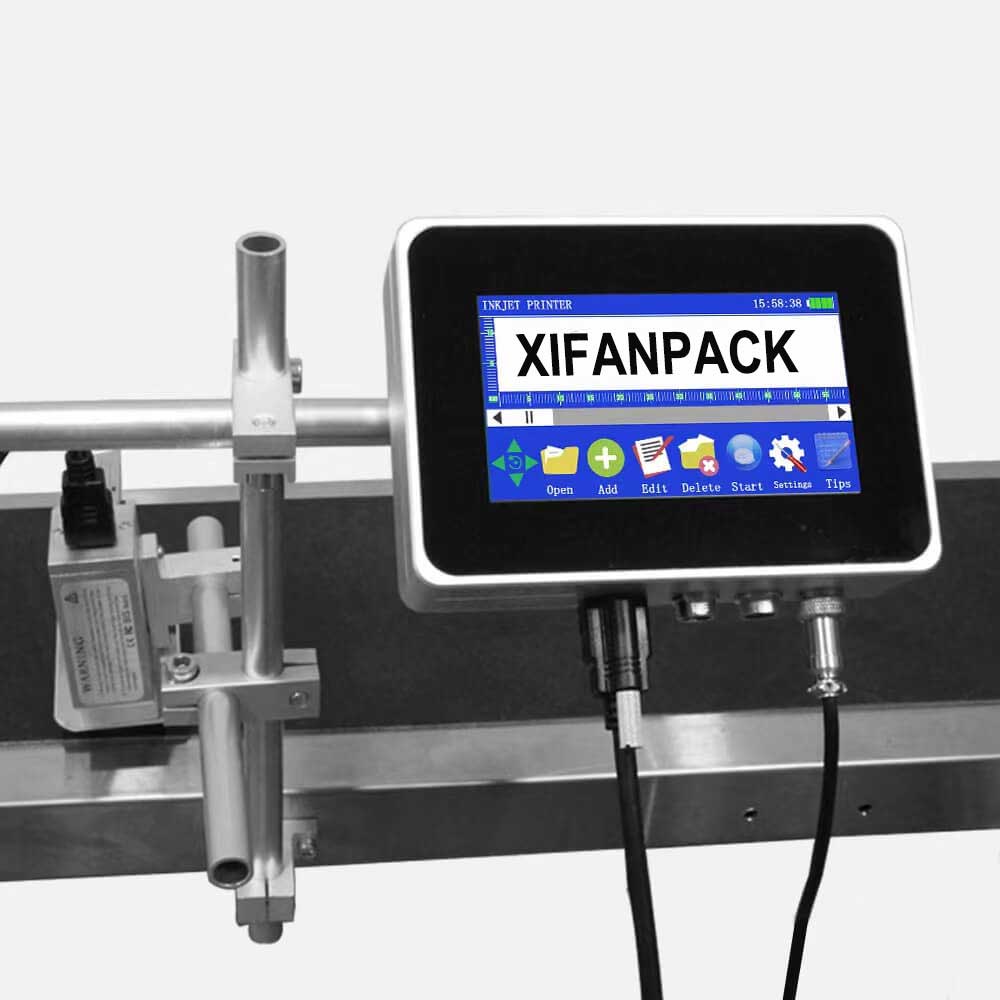

Industrial On-Demand Inkjet Systems
Intelligent Printing

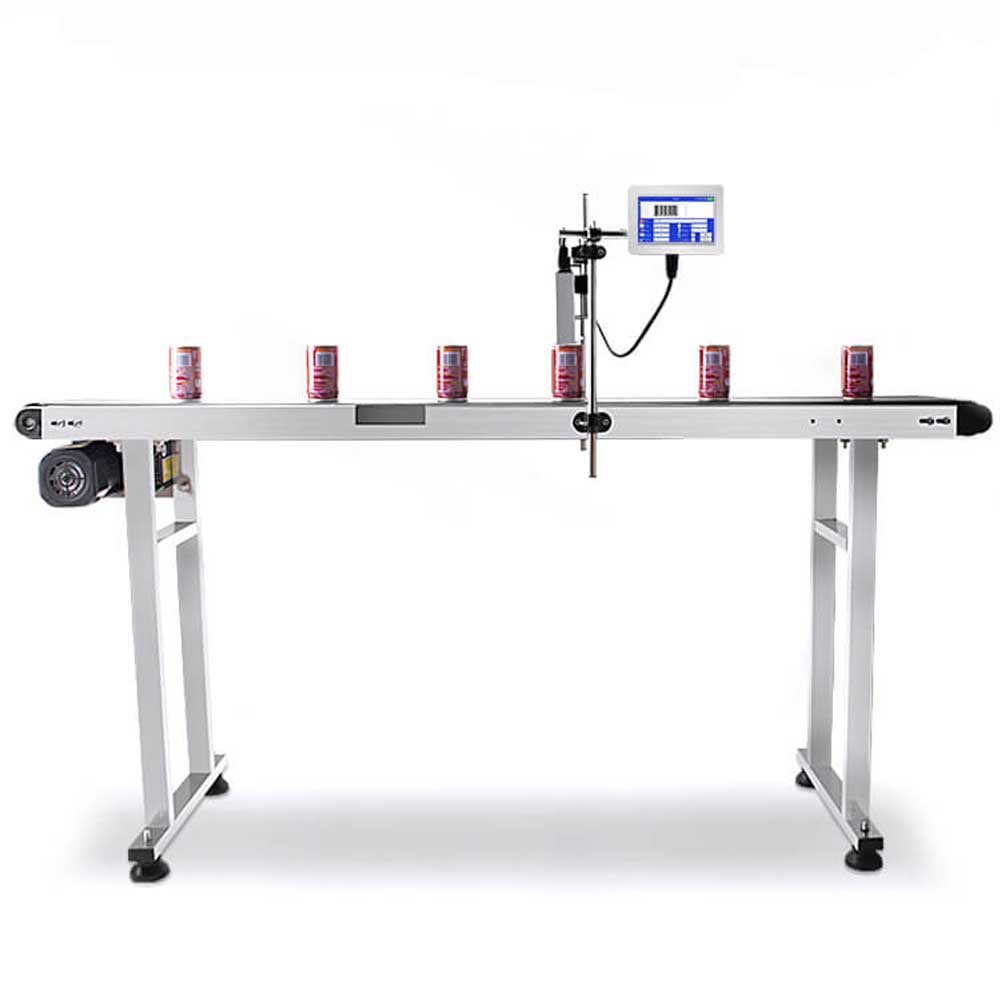

Can be connected to a variety of pipeline intelligent coding to improve production efficiency.The inkjet code is clear and can not be erased,the conveyor speed can be adjusted.
Printing Height
Three types of inkjet height are optional.
print height 2-12.7 mm
print height 2-25.4 mm
print height 2-50.8 mm
| Feature | Details |
|---|---|
| Shape Features | Aluminium, color touch screen |
| Dimension | 15011045mm |
| CPU | Quad-core 1.4 GHz |
| Resolution | 600 DPI |
| Spray Nozzle | Thermal foaming inkjet 2.5 |
| Printing Direction | 360° adjustable for various production needs |
| Print Lines | 1-8 adjustable lines |
| Print Height | 1.2mm-12.7mm |
| Print Distance | 1-10mm mechanical adjustment (optimal: 2-5mm from nozzle to object) |
| Print Content | Chinese, English, numbers, date, time, QR codes, bar codes, images |
| Applications | Board, carton, stone, pipe, cable, metal, plastic, electronics, automotive parts |
| Print Capacity | 2000 characters/message, unlimited length |
| Print Speed | 70m/min |
| Ink Type | Quick-dry eco ink, water-based ink, oil-based ink |
| Ink Colors | Black, white, red, blue, yellow, green, invisible |
| Ink Capacity | 42ml (≈800,000 characters) |
| Connectivity | USB, RS232, DB15, Photoelectric interface, Bluetooth 4.0, WiFi |
| Power | 16.8V DC lithium battery |
| Storage | 1000+ message capacity with external USB transfer |
| Operating Conditions | Temperature: 0-45°C; Humidity: 10%-80% |
